特 點
Characteristics
夾持力大
High Holding Force
精度高
High accuracy
通孔
Strong and durable
主要參數(shù) Main parameters

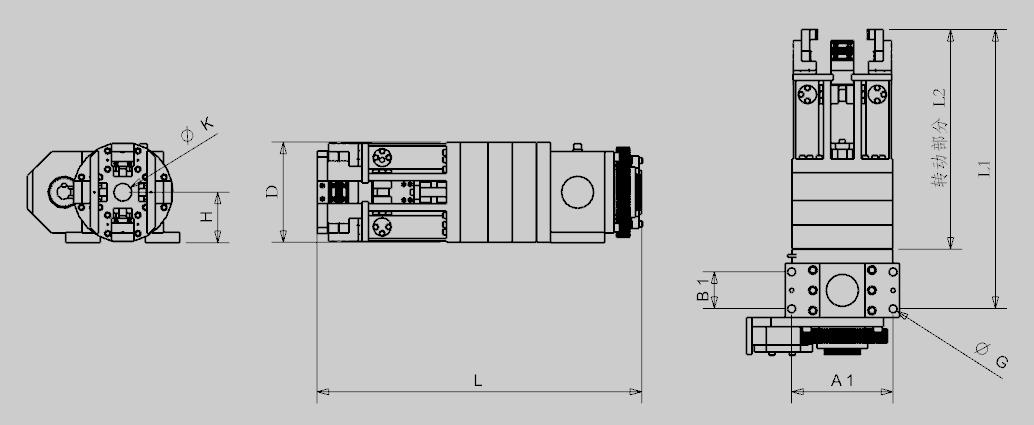

型號 Model number | 總質量Mass. | 旋轉 慣量 Inertia | 載重 能力 Load bearing | 氣壓范圍 Barometric pressure | 最高轉速 Maximum speed | 單爪行程 One-way trip | A1 | B1 | D | K | G | H | L | L1 |
| kg | Kg*M2 | KG | Mpa | r/min | mm | mm | mm | mm | mm | mm | mm | mm | mm | |
B160K30 | 62 | 0.5 | 150 | 0.25-0.8 | 300 | 16 | 220 | 80 | 158 | 18 | 110 | 642 | 543 | 414 |
BK218C小座 | 80 | 0.6 | 300 | 0.25-0.8 | 300 | 22 | 220 | 80 | 218 | 18 | 110 | 705 | 606 | 477 |
B320K60 | 198 | 2.1 | 600 | 0.25-0.8 | 250 | 30 | 330 | 110 | 300 | 18 | 200 | 826 | 725 | 565 |
